RAID 0+1: High Data Transfer Performance
RAID Level 0+1 requires a minimum of 4 drives to implement |
|
|
|
Characteristics/Advantages

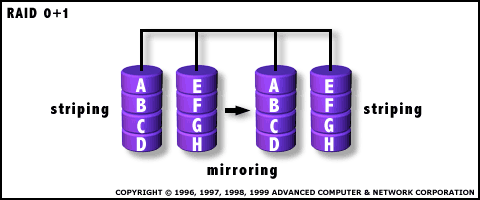

RAID 0+1 is implemented as a mirrored array whose segments are RAID 0 arrays
RAID 0+1 has the same fault tolerance as RAID level 5
RAID 0+1 has the same overhead for fault-tolerance as mirroring alone
High I/O rates are achieved thanks to multiple stripe segments
Excellent solution for sites that need high performance but are not concerned with achieving maximum reliability |
|
|
|
Disadvantages
RAID 0+1 is NOT to be confused with RAID 10. A single drive failure will
cause the whole array to become, in essence, a RAID Level 0 array
Very expensive / High overhead
All drives must move in parallel to proper track lowering sustained performance
Very limited scalability at a very high inherent cost |
|
|
|
